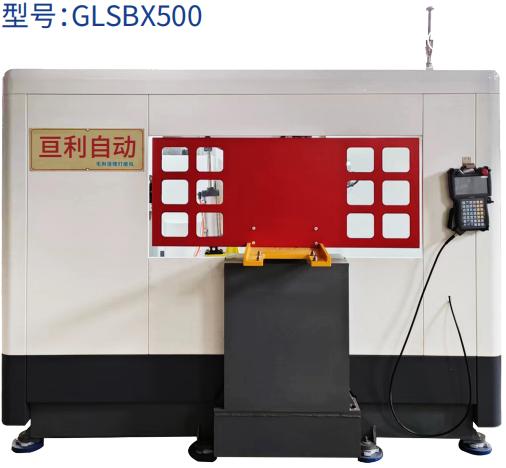

Burr cleaning and grinding robot
power supply:AC380v
Main grinding wheel diameter:400mm
Air pressure:0.5-0.7mpa
Maximum polished workpiece:500mm*500mm*300mm
Spindle grinding wheel power: 11 kW maximum speed 8000 rpm
Power of secondary grinding wheel:4 kW maximum speed 18000 rpm

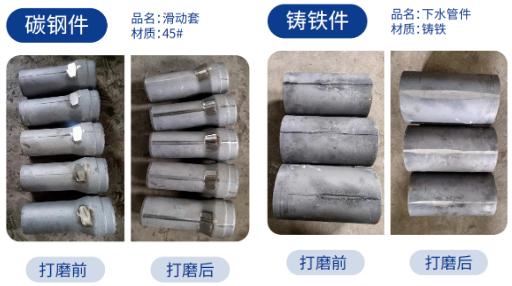

Comparison between grinding workpieces

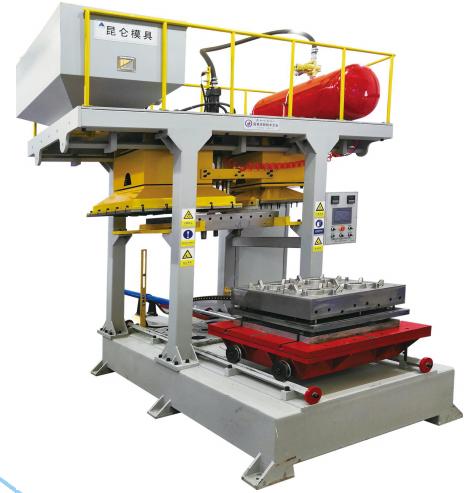

KL-80 mobile sun shot core machine
Maximum mold assembly:800mmX800mmX400mm
Module clamping pressure:0.5-0.8Mpa
The maximum quality of sand bucket:50kg
Compressed air supply pressure:0.5-0.7mpa
Maximum atmospheric pressure: 0.8MPa
power supply:AC380v
Heating method:Electric heating
Maximum weight of equipment:4000kg
Maximum size of equipment:2740mmX3530mmX2970mm

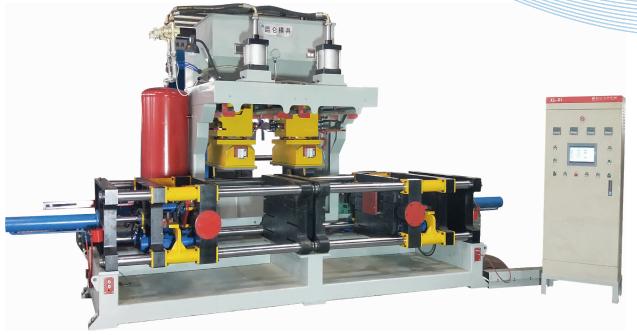

KL-80 flip hydraulic injection core
Maximum mold assembly:800mmX600mmX500mm
Module clamping pressure:0.5-0.8MPa
Sand cylinder capacity:50kg
Maximum weight of sand core:30kg
Compressed air supply pressure:0.5-0.7mpa
Maximum heating power:40kw×2
Maximum size of equipment:5000mmX2500mmX2000mm
Compressed air supply pressure:0.5-0.7mpa
